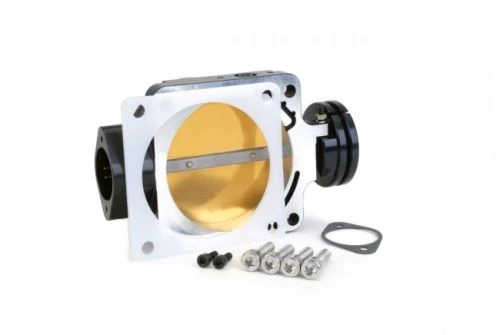

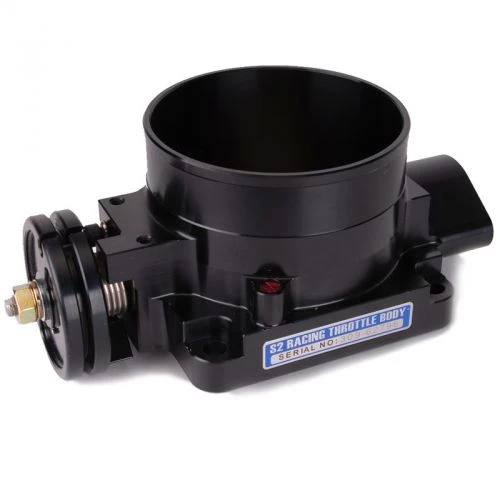

Skunk2 Ultra Race Manifold 90mm Black Pro Series Throttle Body Part Number: 309-05-0905

Part Number:	309-05-0905
Brand:	Skunk2
Color:	Black
Size:	3.54 in (90 mm)
CARB Approved:	No

---

Skunk2 throttle bodies undergo an extensive design and testing process to produce a unit that doesn’t just provide more flow, but retains smooth drivability and OEM throttle characteristics. Skunk2 Pro Series Throttle Bodies are designed using the latest CAE (Computer Aided Engineering) tools to produce a unit that exceeds industry standards. Each Pro Series Throttle Body is CNC machined from forged, billet 6061-T6 aluminum and hard anodized for durability. Additionally, Skunk2’s unique design relocates the MAP sensor underneath and eliminates the OEM coolant outlets for cooler operation and a cleaner appearance.

A larger throttle body is key to producing additional power throughout the powerband on modified engines with increased airflow demands. Skunk2’s new Pro Series Throttle Bodies feature a 90mm bore, and utilize a Ford 5.0 bolt pattern. Skunk2 90mm Pro-Series Throttle Bodies use Honda MAP and TPS sensors.

Features:

• Large 90mm Bore
• Ford Mustang 5.0 Bolt Pattern
• Uses Honda MAP and TPS sensor
• Compatible With OEM Throttle Cable
• CNC-Forged 6061-T6 Billet Aluminum Construction
• Sealed Bearings For Smooth Operation
• Durable, Corrosion-Resistant Hard-Anodized Finish
• Eliminates OEM Water lines For Cooler Operation
• Integrated Skunk2 Badge

---
