Moroso K-Series Swap Baffled Oil Pan Part Number: 20915

Part Number:	20915
Brand:	Moroso

---

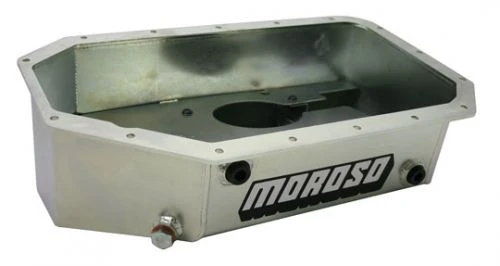

Whether you daily drive, drag, oval, or road race, Moroso has the oil pan your engine needs specially designed for your sport compact. Each pan is fully fabricated from aluminum or steel (all Moroso steel pans are clear zinc finished), with race proven features that control oil for maximum power.

The key is to keep the crankshaft free of excess oil which allows the engine to spin freely and achieve its full power potential.

Features:

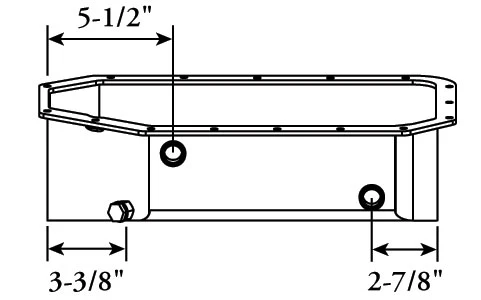

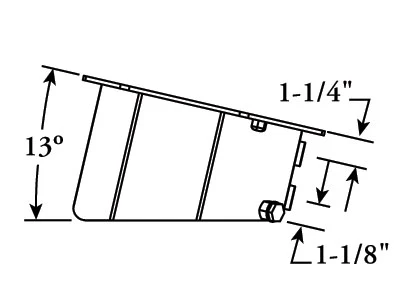

Oil Pan has a thick steel rail with a sump that is 5.5″ deep, 16.75″ long and 9″ wide.
Features a race proven trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing.
Extra capacity: holds two more quarts than stock.
1/2″ NPT fitting for supercharger or turbo drain back.
1/2″ NPT fitting for oil temperature sender.
Magnetic drain plug.
Notes:
Designed to be used with the Acura RSX oil pump assembly and Acura RSX Windage Tray
Oil pump assembly might require slight notching to clear certain K-series main caps.
K20/K24 Frank builds may require modification.

---
