DeatschWerks Black Fuel Pressure Regulator Part Number: 6-1000-FRB

The approach taken for the DWR1000 adjustable fuel pressure regulator is not to reinvent the wheel, but simply to make a better wheel. All the best aspects of the existing regulators on the market were included in the DWR1000, but in addition, improvements were made in materials and design to culminate in the best all-around regulator available to date.

Designed and tested specifically for ethanol compatibility ” Many popular regulators on the market today contain brass internals, which can corrode and weaken when used with e85. The DWR1000 was designed from the ground up with e85 in mind and is constructed with 100% e85 compatible materials such as stainless steel, anodized aluminum, and nitrile.

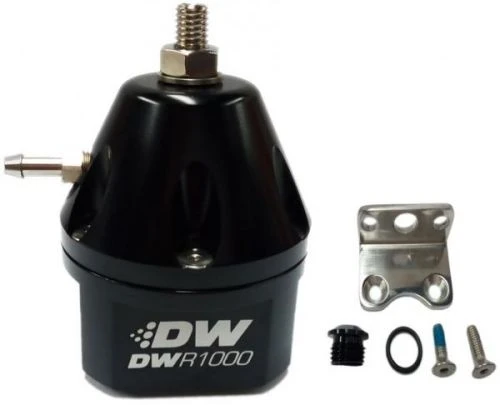

DWR1000 adjustable fuel pressure regulator, anodized black. Dual -6AN inlet and -6AN outlet. Universal fitment

DWR1000 Physical Specs

• Weight w/ bracket – 12.9 oz (365g)
• Housing Matierals – anodized T6061
• Hardware/ Brackets – Stainless Steel
• Tension Spring – high carbon steel
• Diaphragm – 40mm fiber-nitrile

DWR1000 Performance Specs

• Pressure Range – 30-100psi
• Flow Rating – 500 LPH+
• HP Rating – 1000hp+
• Gauge Port Fitting – 1/8 NPT
• Line Fitting – (2-in, 1-out)
• -6AN ORB

Due to the manufacturer’s price control policy, this item may be excluded from promotions and discounts
